New Equipment

Stand Up Rider

Name: Stand Up Rider
Brand: Toyota

The Toyota Stand-Up Rider is at the top of its class in performance and comfort. With a lifting capacity rangingfrom 3,000-5,000 lbs., this power player is perfect for any warehouse application, whether you’re docking or

Request a Quote Call: 833-850-LIFT

Overview

Navigation in 10′ aisles

Up to 5,000 lb. Lifting Capacity

Up to 23′ Lift height

Comfort Ride Suspension

AC Drive and Lift Motors

Low 8" Step Height

Open View Mast

Multifunction Control Handle

Better performance. More versatility.

3,000 / 3,500 / 4,000 / 5,000

Load Capacity (lbs)

7.2 / 7.5 / 8.0

Max. Travel Speed Full Load (MPH)

55 / 70 / 65

Max. Lift Speed Full Load (FPM)

Model Specifications

Compare model specifications for this equipment family.
Model Number	Load Capacity (lbs)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Length
SR1-BEF30	3,000	7.2	55	15	66.3-71.1
SR1-BET30	3,000	7.5	55	15	66.3-71.1
SR1-BEF35	3,500	7.2	55	15	66.3-71.1
SR1-BET35	3,500	7.2	55	15	66.3-71.1
SR1-BEF40	4,000	7.2	55	15	71.1-73.8
SR1-BET40	4,000	7.2	55	15	71.1-73.8
SR1-HPF30	3,000	8.0	70	15	66.5-71.2
SR1-HPT30	3,000	8.0	70	15	66.5-71.2
SR1-HPM30	3,000	8.0	70	15	71.1-73.8
SR1-HPF35	3,500	8.0	70	15	66.5-71.2
SR1-HPT35	3,500	8.0	70	15	66.5-71.2
SR1-HPM35	3,500	8.0	70	15	71.8-73.3
SR1-HPF40	4,000	8.0	65	15	71.2 - 74
SR1-HPT40	4,000	8.0	65	15	71.2 - 74
SR1-HPM40	4,000	8.0	65	15	71.8 - 76.1
SR1-HPF50	5,000	8.0	65	15	76.7
SR1-HPT50	5,000	8.0	65	15	76.7
SR1-HPM50	5,000	8.0	65	15	77-78.6

SR1-BEF30

Load Capacity (lbs): 3,000
Max. Travel Speed Full Load (MPH): 7.2
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 66.3-71.1

SR1-BET30

Load Capacity (lbs): 3,000
Max. Travel Speed Full Load (MPH): 7.5
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 66.3-71.1

SR1-BEF35

Load Capacity (lbs): 3,500
Max. Travel Speed Full Load (MPH): 7.2
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 66.3-71.1

SR1-BET35

Load Capacity (lbs): 3,500
Max. Travel Speed Full Load (MPH): 7.2
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 66.3-71.1

SR1-BEF40

Load Capacity (lbs): 4,000
Max. Travel Speed Full Load (MPH): 7.2
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 71.1-73.8

SR1-BET40

Load Capacity (lbs): 4,000
Max. Travel Speed Full Load (MPH): 7.2
Max. Lift Speed Full Load (FPM): 55
Max. Gradeability Full Load (%): 15
Length: 71.1-73.8

SR1-HPF30

Load Capacity (lbs): 3,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 66.5-71.2

SR1-HPT30

Load Capacity (lbs): 3,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 66.5-71.2

SR1-HPM30

Load Capacity (lbs): 3,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 71.1-73.8

SR1-HPF35

Load Capacity (lbs): 3,500
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 66.5-71.2

SR1-HPT35

Load Capacity (lbs): 3,500
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 66.5-71.2

SR1-HPM35

Load Capacity (lbs): 3,500
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 70
Max. Gradeability Full Load (%): 15
Length: 71.8-73.3

SR1-HPF40

Load Capacity (lbs): 4,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 71.2 - 74

SR1-HPT40

Load Capacity (lbs): 4,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 71.2 - 74

SR1-HPM40

Load Capacity (lbs): 4,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 71.8 - 76.1

SR1-HPF50

Load Capacity (lbs): 5,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 76.7

SR1-HPT50

Load Capacity (lbs): 5,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 76.7

SR1-HPM50

Load Capacity (lbs): 5,000
Max. Travel Speed Full Load (MPH): 8.0
Max. Lift Speed Full Load (FPM): 65
Max. Gradeability Full Load (%): 15
Length: 77-78.6

Ready for anything

Moving Materials Efficiently

Improve productivity by safely transporting materials, pallets, and inventory throughout your facility with equipment designed to keep operations moving.

Warehouse & Distribution Operations

Support receiving, storage, picking, and shipping activities with equipment built to maximize throughput and optimize available warehouse space.

Manufacturing & Production Support

Keep production lines supplied and workflows uninterrupted with dependable material handling solutions designed for demanding industrial environments.

Indoor & Outdoor Applications

Operate confidently across a variety of environments, from warehouse aisles and loading docks to outdoor yards and job sites, depending on your application needs.

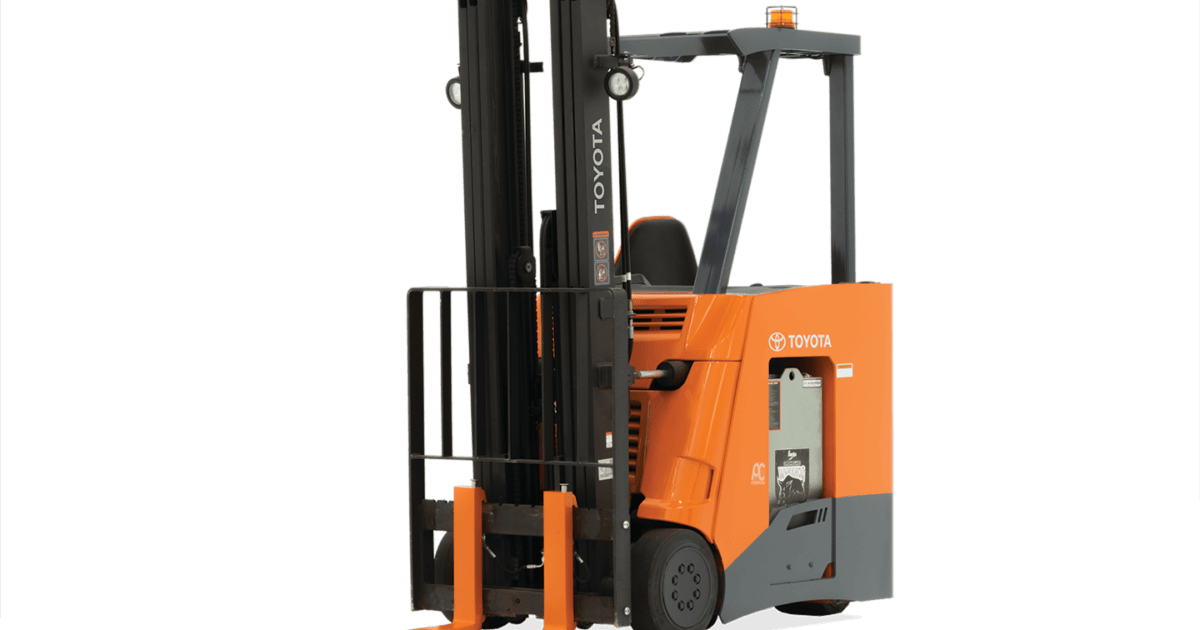

Image 1 of 4
