Name: End-Controlled Rider Pallet Jack
Brand: Toyota

Overview

The Toyota End-Controlled Rider Pallet Jack is the ultimate product-moving machine. Doubling as a ground-level order picker, this walkie rider is the perfect asset to any warehouse or distribution center. With it’s superior maneuverability and

6” lift capability

36” - 144” Fork Options Available

22” - 25.5” Fork Width

Dual Lift Cylinders

Multifunctional Control Handle

Glance & Go Display

24-Volt electrical system

Regenerative Braking

Hydraulic overload protection valve

Heavy-duty spring-loaded stabilizing casters

Programmable Performance

Controller Area Network (CAN-BUS) Communications

Error Indicator with Self-Diagnostics

48," 60" and 72" Load Backrest Extension

Electronic Coast Control Option - augments productivity by eliminating the need for operator to pull handle down during floor-level order picking

Cold Conditioning Package Option - Includes cold storage-specific oil, greasable steer bearing and linkage bushings, and stainless steel linkage pins for use in cold storage environments

Galvanized Option - for customers who move materials in and out of: cold storage facilities; chemical and salt and brine industries; or in areas where frequent wash down is required to remove contaminants

Storage Tray with Clip Board, Load Backrest Mounted - an ABS plastic tray designed to carry pens, markers, tape, utility knife, paperwork and other various work materials.

Dual Tandem Load Wheels - replaces the standard single polyurethane load wheels with “Double Boggie” style load wheels

Various Fork Lengths and Widths

Better performance. More versatility.

6,000 / 8,000

Load Capacity (lbs)

6.5

Max. Travel Speed Full Load (MPH)

N/A

Max. Lift Speed Full Load (FPM)

Model Specifications

Compare model specifications for this equipment family.
Model Number	Load Capacity (lbs)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack (In.)
8HBE30	6,000	6.5	N/A	10	85.4
8HBE40	8,000	6.5	N/A	10	129.3

8HBE30

Load Capacity (lbs): 6,000
Max. Travel Speed Full Load (MPH): 6.5
Max. Lift Speed Full Load (FPM): N/A
Max. Gradeability Full Load (%): 10
Basic Right Angle Stack (In.): 85.4

8HBE40

Load Capacity (lbs): 8,000
Max. Travel Speed Full Load (MPH): 6.5
Max. Lift Speed Full Load (FPM): N/A
Max. Gradeability Full Load (%): 10
Basic Right Angle Stack (In.): 129.3

Ready for anything

Moving Materials Efficiently

Improve productivity by safely transporting materials, pallets, and inventory throughout your facility with equipment designed to keep operations moving.

Warehouse & Distribution Operations

Support receiving, storage, picking, and shipping activities with equipment built to maximize throughput and optimize available warehouse space.

Manufacturing & Production Support

Keep production lines supplied and workflows uninterrupted with dependable material handling solutions designed for demanding industrial environments.

Indoor & Outdoor Applications

Operate confidently across a variety of environments, from warehouse aisles and loading docks to outdoor yards and job sites, depending on your application needs.

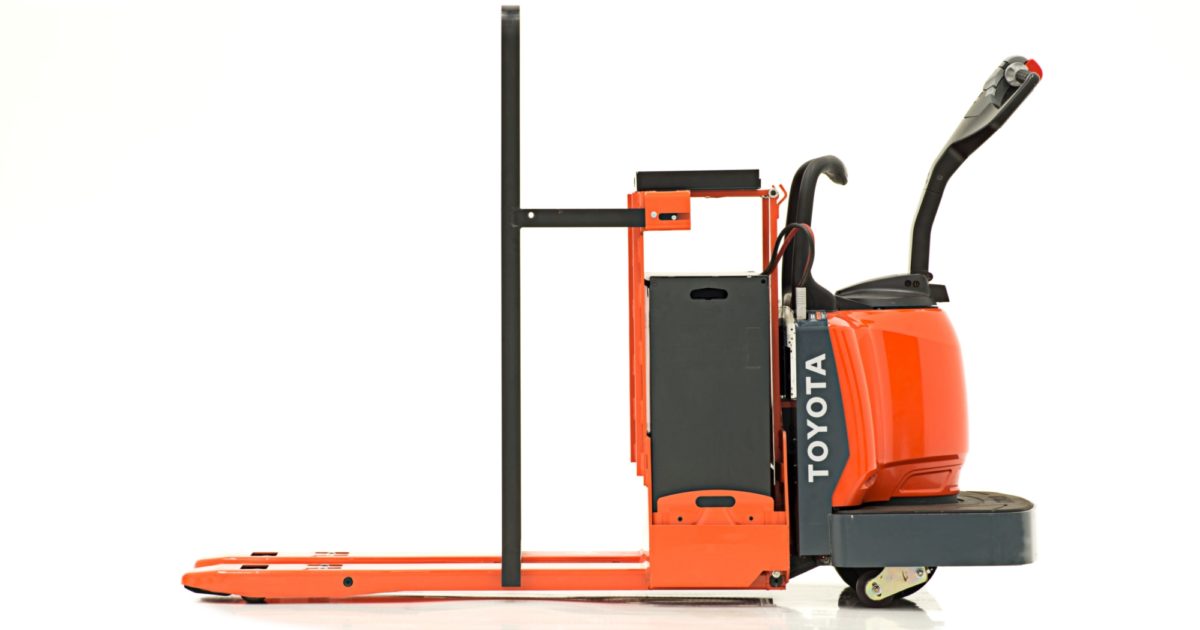

End-Controlled Rider Pallet Jack Gallery 1

Image 1 of 7
