New Equipment

High-Capacity IC Pneumatic Forklift

Name: High-Capacity IC Pneumatic Forklift
Brand: Toyota

The High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota’s product line. With the capability to lift up to 62 tons, this giant forklift is ideal for loading large shipping containers onto ships and

Request a Quote Call: 833-850-LIFT

Overview

Wide View, Enclosed Operator Cabin

Tilt Steering Column

Integral Overhead Cab Guard

Load Center of 24”, 36” and 48”

Heavy-Duty Steer Axle

Overhead Tilt Cylinder

LED Headlights and Rear Work Lights

CUMMINS® 6.7 Liter or 8.9 Liter Engine

Dana Transmission

Operator Presence Sensing System (OPSS)

MD4 7” Touch Screen Display

Full Hydraulic Power Steering with Synchronized Steering

Powertrain precleaner

Powertrain high air intake with precleaner

Foam-filled pneumatic tires

Open cab (less doors, glass, wipers, heat)

Various camera systems for added visibility

Air-conditioning

High-speed hydraulics

Jumpstart receptacle

Various lights and alarms

Better performance. More versatility.

100,000 +17

Load Capacity (lbs)

20.0 (no load) +5

Max. Travel Speed Full Load (MPH)

34.7 +5

Max. Lift Speed Full Load (FPM)

Model Specifications

Compare model specifications for this equipment family.
Model Number	Load Capacity (lbs)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack (In.)
THD10000-48	100,000	20.0 (no load)	34.7	11.7	364
THD11000-48	110,000	20.0 (no load)	34.7	10.9	364
THD12000-48	120,000	20.0 (no load)	34.7	10.1	441
THD12500-48	125,000	20.0 (no load)	34.7	9.9	441.13
THD3000-24	30,000	23 (no load)	64.1 (standard) 128.2 (high-speed option)	24	203.2
THD3300-24	33,000	23 (no load)	64.1 (standard) 128.2 (high-speed option)	24	227
THD3300S-24	33,000	23 (no load)	64.1 (standard) 128.2 (high-speed option)	23	203.2
THD3600-24	36,000	23 (no load)	64.1 (standard) 128.2 (high-speed option)	22	237
THD3600-36	36,000	23 (no load)	53.2 (standard) 106.4 (high-speed option)	20	242
THD3600-48	36,000	23 (no load)	53.2 (standard) 106.4 (high-speed option)	19	242
THD3600S-24	36,000	23 (no load)	64.1 (standard) 128.2 (high-speed option)	21	206
THD3600S-36	36,000	23 (no load)	53.2 (standard) 106.4 (high-speed option)	19	206.5
THD4000-48	40,000	23 (no load)	53.2 (standard) 106.4 (high-speed option)	18	252
THD4500-48	45,000	24.9 (no load)	53.2 (standard) 106.4 (high-speed option)	19	305
THD4500S-48	45,000	24.9 (no load)	53.2 (standard) 106.4 (high-speed option)	18	276.3
THD5000-48	50,000	24.9 (no load)	32.7 (standard) 65.4 (high-speed option)	17	305
THD5200-48	52,000	24.9 (no load)	32.7 (standard) 65.4 (high-speed option)	17	305
THD5500-48	55,000	24.9 (no load)	32.7 (standard) 65.4 (high-speed option)	16	305
THD6000-48	60,000	21.1 (no load)	32.7 (standard) 65.4 (high-speed option)	18	315
THD6500-48	65,000	21.1 (no load)	32.7 (standard) 65.4 (high-speed option)	17	315
THD7000-48	70,000	21.1 (no load)	25 (standard) 50 (high-speed option)	14	315
THD7200-48	72,000	21.1 (no load)	25 (standard) 50 (high-speed option)	14	315
THD8000-48	80,000	19.2 (no load)	43.9	17	355.5
THD8000S-48	80,000	19.2	43.9	16.2	319.3
THD9250-48	92,500	20.0 (no load)	43.9	12.7	355.5
THD9250S-48	92,500	20.0 (no load)	43.9	12.1	327.8

THD10000-48

Load Capacity (lbs): 100,000
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 34.7
Max. Gradeability Full Load (%): 11.7
Basic Right Angle Stack (In.): 364

THD11000-48

Load Capacity (lbs): 110,000
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 34.7
Max. Gradeability Full Load (%): 10.9
Basic Right Angle Stack (In.): 364

THD12000-48

Load Capacity (lbs): 120,000
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 34.7
Max. Gradeability Full Load (%): 10.1
Basic Right Angle Stack (In.): 441

THD12500-48

Load Capacity (lbs): 125,000
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 34.7
Max. Gradeability Full Load (%): 9.9
Basic Right Angle Stack (In.): 441.13

THD3000-24

Load Capacity (lbs): 30,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 64.1 (standard) 128.2 (high-speed option)
Max. Gradeability Full Load (%): 24
Basic Right Angle Stack (In.): 203.2

THD3300-24

Load Capacity (lbs): 33,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 64.1 (standard) 128.2 (high-speed option)
Max. Gradeability Full Load (%): 24
Basic Right Angle Stack (In.): 227

THD3300S-24

Load Capacity (lbs): 33,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 64.1 (standard) 128.2 (high-speed option)
Max. Gradeability Full Load (%): 23
Basic Right Angle Stack (In.): 203.2

THD3600-24

Load Capacity (lbs): 36,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 64.1 (standard) 128.2 (high-speed option)
Max. Gradeability Full Load (%): 22
Basic Right Angle Stack (In.): 237

THD3600-36

Load Capacity (lbs): 36,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 20
Basic Right Angle Stack (In.): 242

THD3600-48

Load Capacity (lbs): 36,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 19
Basic Right Angle Stack (In.): 242

THD3600S-24

Load Capacity (lbs): 36,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 64.1 (standard) 128.2 (high-speed option)
Max. Gradeability Full Load (%): 21
Basic Right Angle Stack (In.): 206

THD3600S-36

Load Capacity (lbs): 36,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 19
Basic Right Angle Stack (In.): 206.5

THD4000-48

Load Capacity (lbs): 40,000
Max. Travel Speed Full Load (MPH): 23 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 18
Basic Right Angle Stack (In.): 252

THD4500-48

Load Capacity (lbs): 45,000
Max. Travel Speed Full Load (MPH): 24.9 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 19
Basic Right Angle Stack (In.): 305

THD4500S-48

Load Capacity (lbs): 45,000
Max. Travel Speed Full Load (MPH): 24.9 (no load)
Max. Lift Speed Full Load (FPM): 53.2 (standard) 106.4 (high-speed option)
Max. Gradeability Full Load (%): 18
Basic Right Angle Stack (In.): 276.3

THD5000-48

Load Capacity (lbs): 50,000
Max. Travel Speed Full Load (MPH): 24.9 (no load)
Max. Lift Speed Full Load (FPM): 32.7 (standard) 65.4 (high-speed option)
Max. Gradeability Full Load (%): 17
Basic Right Angle Stack (In.): 305

THD5200-48

Load Capacity (lbs): 52,000
Max. Travel Speed Full Load (MPH): 24.9 (no load)
Max. Lift Speed Full Load (FPM): 32.7 (standard) 65.4 (high-speed option)
Max. Gradeability Full Load (%): 17
Basic Right Angle Stack (In.): 305

THD5500-48

Load Capacity (lbs): 55,000
Max. Travel Speed Full Load (MPH): 24.9 (no load)
Max. Lift Speed Full Load (FPM): 32.7 (standard) 65.4 (high-speed option)
Max. Gradeability Full Load (%): 16
Basic Right Angle Stack (In.): 305

THD6000-48

Load Capacity (lbs): 60,000
Max. Travel Speed Full Load (MPH): 21.1 (no load)
Max. Lift Speed Full Load (FPM): 32.7 (standard) 65.4 (high-speed option)
Max. Gradeability Full Load (%): 18
Basic Right Angle Stack (In.): 315

THD6500-48

Load Capacity (lbs): 65,000
Max. Travel Speed Full Load (MPH): 21.1 (no load)
Max. Lift Speed Full Load (FPM): 32.7 (standard) 65.4 (high-speed option)
Max. Gradeability Full Load (%): 17
Basic Right Angle Stack (In.): 315

THD7000-48

Load Capacity (lbs): 70,000
Max. Travel Speed Full Load (MPH): 21.1 (no load)
Max. Lift Speed Full Load (FPM): 25 (standard) 50 (high-speed option)
Max. Gradeability Full Load (%): 14
Basic Right Angle Stack (In.): 315

THD7200-48

Load Capacity (lbs): 72,000
Max. Travel Speed Full Load (MPH): 21.1 (no load)
Max. Lift Speed Full Load (FPM): 25 (standard) 50 (high-speed option)
Max. Gradeability Full Load (%): 14
Basic Right Angle Stack (In.): 315

THD8000-48

Load Capacity (lbs): 80,000
Max. Travel Speed Full Load (MPH): 19.2 (no load)
Max. Lift Speed Full Load (FPM): 43.9
Max. Gradeability Full Load (%): 17
Basic Right Angle Stack (In.): 355.5

THD8000S-48

Load Capacity (lbs): 80,000
Max. Travel Speed Full Load (MPH): 19.2
Max. Lift Speed Full Load (FPM): 43.9
Max. Gradeability Full Load (%): 16.2
Basic Right Angle Stack (In.): 319.3

THD9250-48

Load Capacity (lbs): 92,500
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 43.9
Max. Gradeability Full Load (%): 12.7
Basic Right Angle Stack (In.): 355.5

THD9250S-48

Load Capacity (lbs): 92,500
Max. Travel Speed Full Load (MPH): 20.0 (no load)
Max. Lift Speed Full Load (FPM): 43.9
Max. Gradeability Full Load (%): 12.1
Basic Right Angle Stack (In.): 327.8

Ready for anything

Moving Materials Efficiently

Improve productivity by safely transporting materials, pallets, and inventory throughout your facility with equipment designed to keep operations moving.

Warehouse & Distribution Operations

Support receiving, storage, picking, and shipping activities with equipment built to maximize throughput and optimize available warehouse space.

Manufacturing & Production Support

Keep production lines supplied and workflows uninterrupted with dependable material handling solutions designed for demanding industrial environments.

Indoor & Outdoor Applications

Operate confidently across a variety of environments, from warehouse aisles and loading docks to outdoor yards and job sites, depending on your application needs.

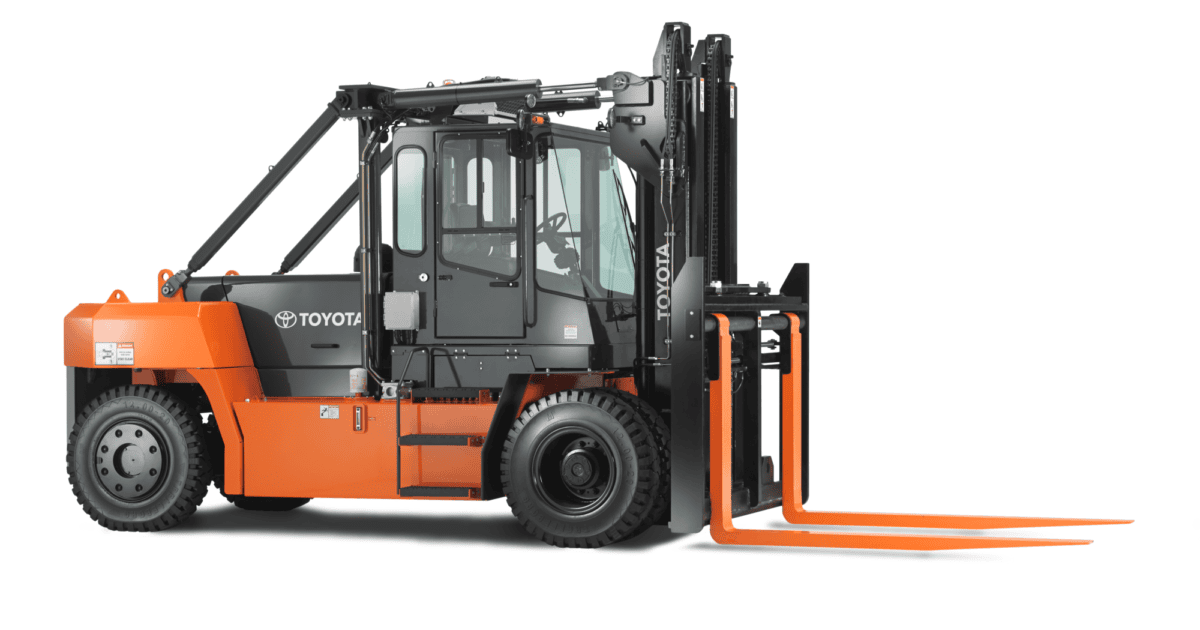

High-Capacity IC Pneumatic Forklift Gallery 1
