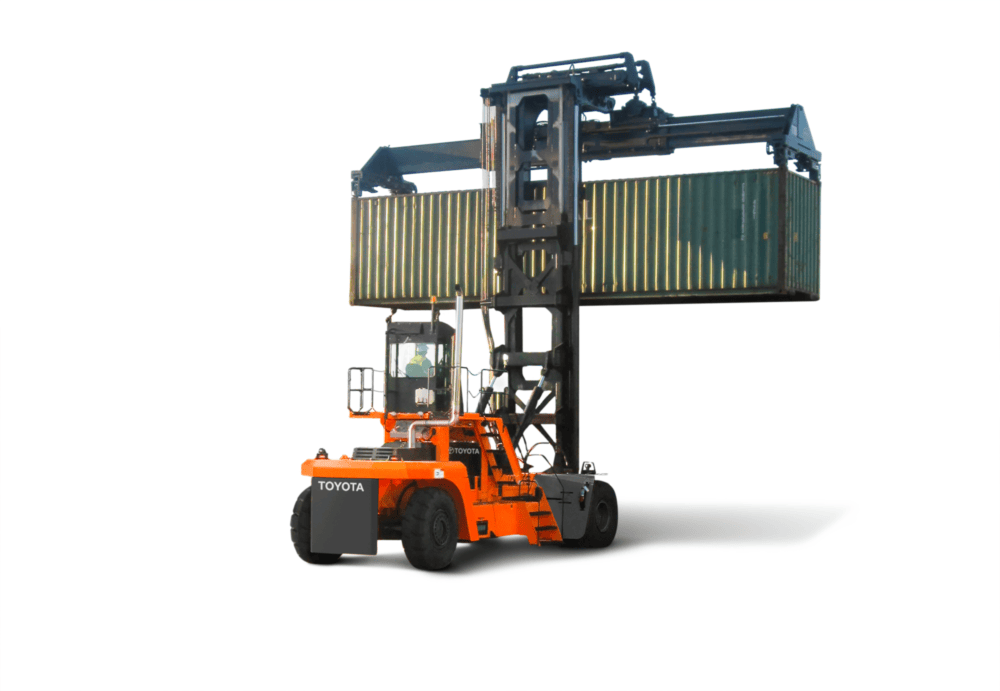

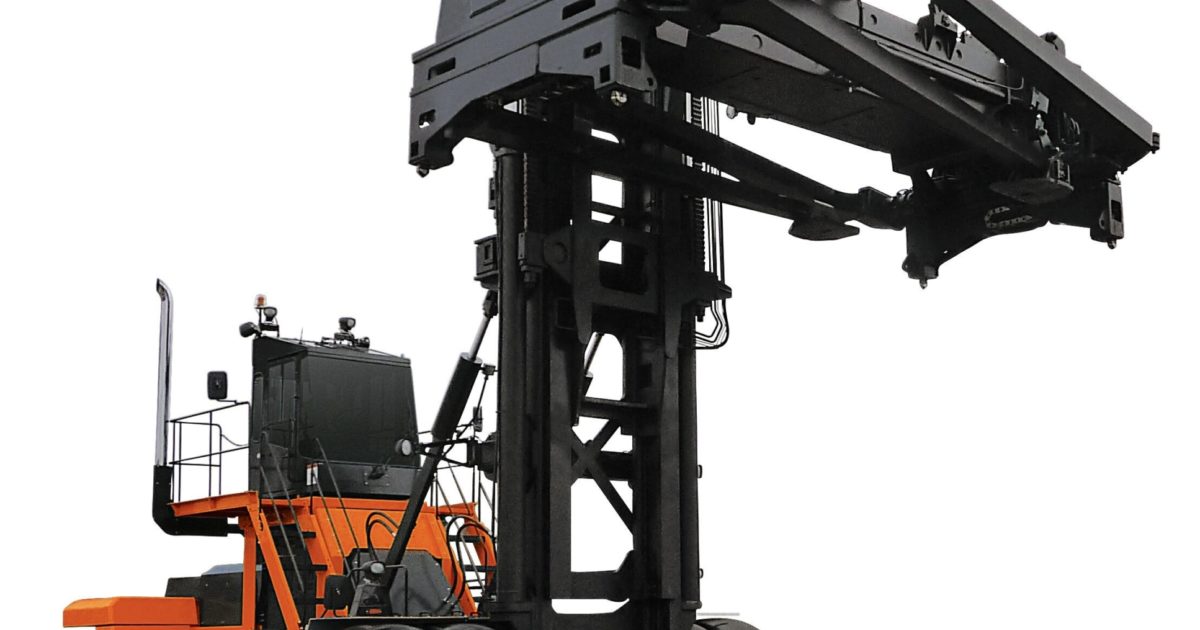

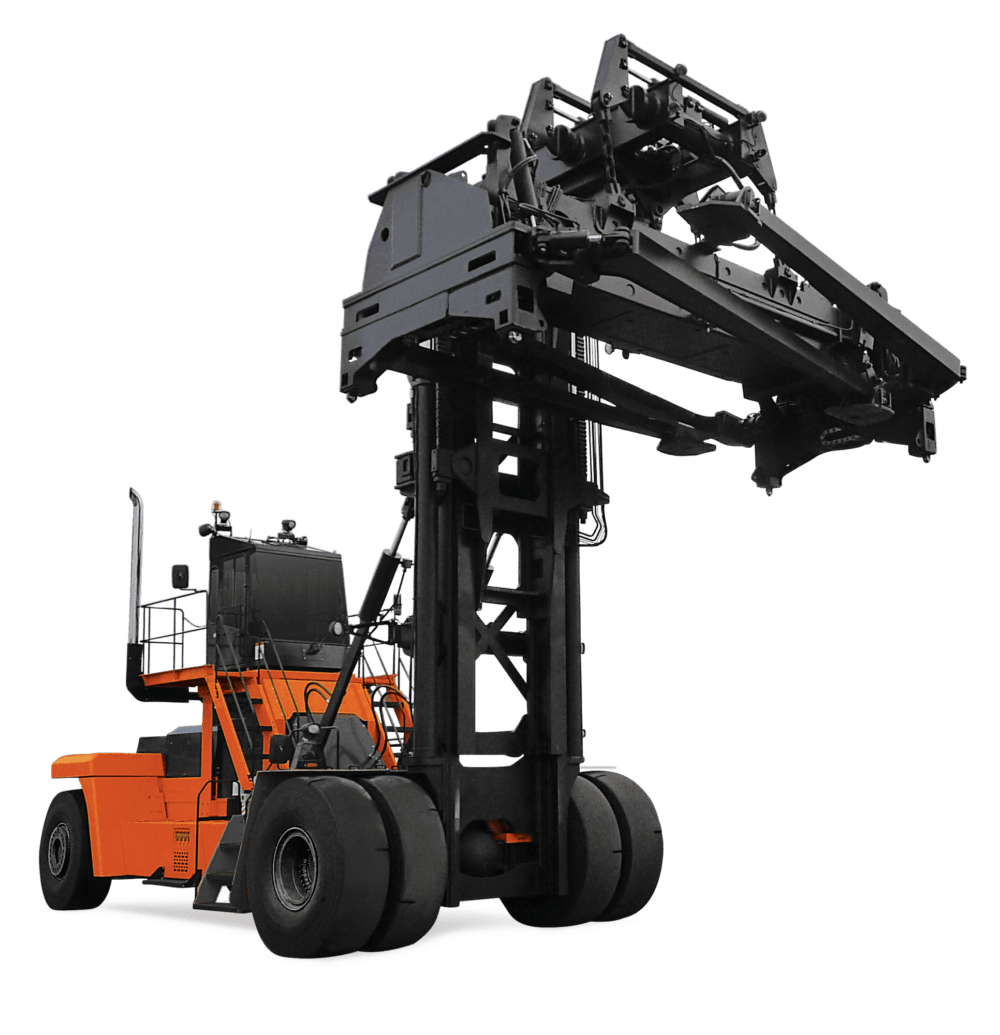

Name: Loaded Container Handler
Brand: Toyota

Overview

With up to 90,000 lbs of pure lifting power the Toyota Loaded Container Handler is the king of the port, terminal, or shipping yard. This powerhouse container handler is able to stack containers up to

CUMMINS® QSM- 11 335HP Turbocharged Diesel Engine

Wide-view Mast

Load Sense “On Demand” Steer Pump

12-Plate Modulation

Two-point side post attachment

Four-point top pick twistlock attachment

Two-point side hook attachment

Better performance. More versatility.

80,000 (2-High) / 75,000 (6-High) +3

Load Capacity (lbs)

20 / 19.2

Max. Travel Speed Full Load (MPH)

47

Max. Lift Speed Full Load (FPM)

Model Specifications

Compare model specifications for this equipment family.
Model Number	Load Capacity (lbs)	Max. Travel Speed Full Load (MPH)	Max. Lift Speed Full Load (FPM)	Max. Gradeability Full Load (%)	Basic Right Angle Stack (In.)
THD8000-L6	80,000 (2-High) / 75,000 (6-High)	20	47	9.8	522 (20' cont.) / 601 (40' cont.)
THD8600-L5	86,000 (2-High) / 76,000 (5-High)	19.2	47	10.7	522 (20' cont.) / 601 (40' cont.)
THD9000-L3	90,000 (2-High) / 90,000 (3-High)	19.2	47	11.5	522 (20' cont.) / 601 (40' cont.)
THD9000-L4	90,000 (2-High) / 85,000 (4-High)	19.2	47	11.1	522 (20' cont.) / 601 (40' cont.)

THD8000-L6

Load Capacity (lbs): 80,000 (2-High) / 75,000 (6-High)
Max. Travel Speed Full Load (MPH): 20
Max. Lift Speed Full Load (FPM): 47
Max. Gradeability Full Load (%): 9.8
Basic Right Angle Stack (In.): 522 (20' cont.) / 601 (40' cont.)

THD8600-L5

Load Capacity (lbs): 86,000 (2-High) / 76,000 (5-High)
Max. Travel Speed Full Load (MPH): 19.2
Max. Lift Speed Full Load (FPM): 47
Max. Gradeability Full Load (%): 10.7
Basic Right Angle Stack (In.): 522 (20' cont.) / 601 (40' cont.)

THD9000-L3

Load Capacity (lbs): 90,000 (2-High) / 90,000 (3-High)
Max. Travel Speed Full Load (MPH): 19.2
Max. Lift Speed Full Load (FPM): 47
Max. Gradeability Full Load (%): 11.5
Basic Right Angle Stack (In.): 522 (20' cont.) / 601 (40' cont.)

THD9000-L4

Load Capacity (lbs): 90,000 (2-High) / 85,000 (4-High)
Max. Travel Speed Full Load (MPH): 19.2
Max. Lift Speed Full Load (FPM): 47
Max. Gradeability Full Load (%): 11.1
Basic Right Angle Stack (In.): 522 (20' cont.) / 601 (40' cont.)

Ready for anything

Moving Materials Efficiently

Improve productivity by safely transporting materials, pallets, and inventory throughout your facility with equipment designed to keep operations moving.

Warehouse & Distribution Operations

Support receiving, storage, picking, and shipping activities with equipment built to maximize throughput and optimize available warehouse space.

Manufacturing & Production Support

Keep production lines supplied and workflows uninterrupted with dependable material handling solutions designed for demanding industrial environments.

Indoor & Outdoor Applications

Operate confidently across a variety of environments, from warehouse aisles and loading docks to outdoor yards and job sites, depending on your application needs.

Image 1 of 3

FAQs

Find answers to common questions about our equipment, solutions, services, and support to help you make informed decisions for your operation.

How do I know if this equipment is right for my operation?

Selecting the right equipment depends on factors like load capacity, lift height, operating environment, aisle width, and daily usage requirements. Our team can help evaluate your application and recommend the best solution.

Can this equipment be customized for my specific needs?

Yes. Many products can be configured with different attachments, mast options, tire types, power sources, and operator features to meet your operational requirements.

Do you offer financing options?

We offer a variety of financing and leasing programs designed to help businesses acquire equipment while managing cash flow and operational budgets.

Is operator training available?

Yes. We provide operator training programs that help improve safety, efficiency, and compliance while ensuring your team is prepared to operate equipment properly.

What maintenance and service support is available?

Our factory-trained technicians provide preventative maintenance, repairs, emergency service, and ongoing support to help maximize uptime and equipment performance.

Are replacement parts readily available?

Yes. We maintain access to a large inventory of genuine replacement parts and can help source the components needed to keep your equipment operating reliably.

What warranty coverage comes with this equipment?

Warranty coverage varies by manufacturer and product type. Our team can provide detailed warranty information and explain available protection plans for your equipment.

How quickly can I receive a quote or speak with a specialist?

Most inquiries receive a response within one business day. Our team will review your requirements, answer questions, and help you find the right equipment solution for your operation.
