New Equipment

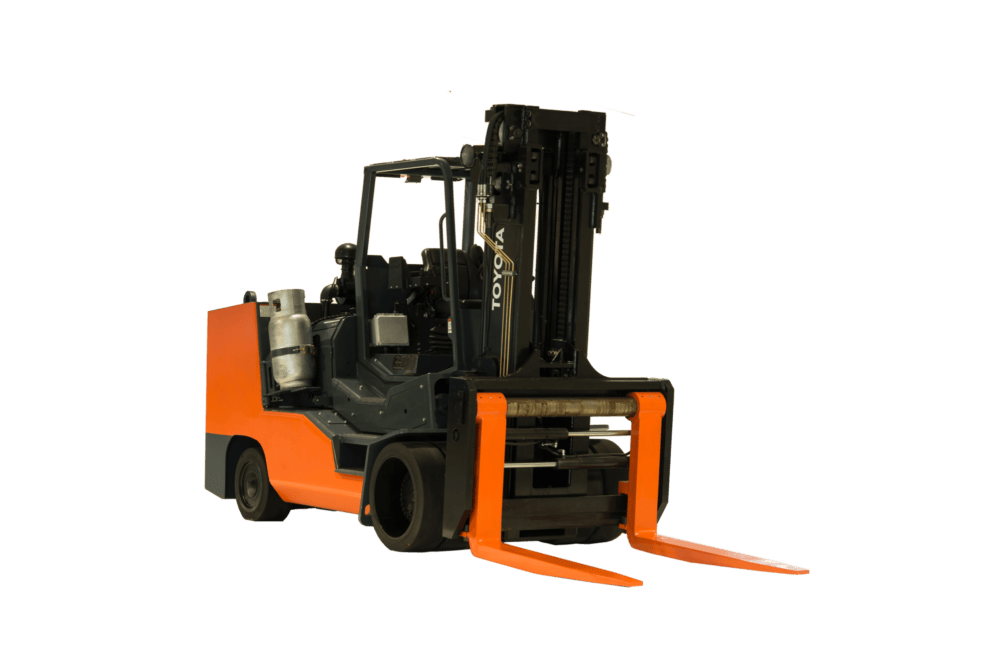

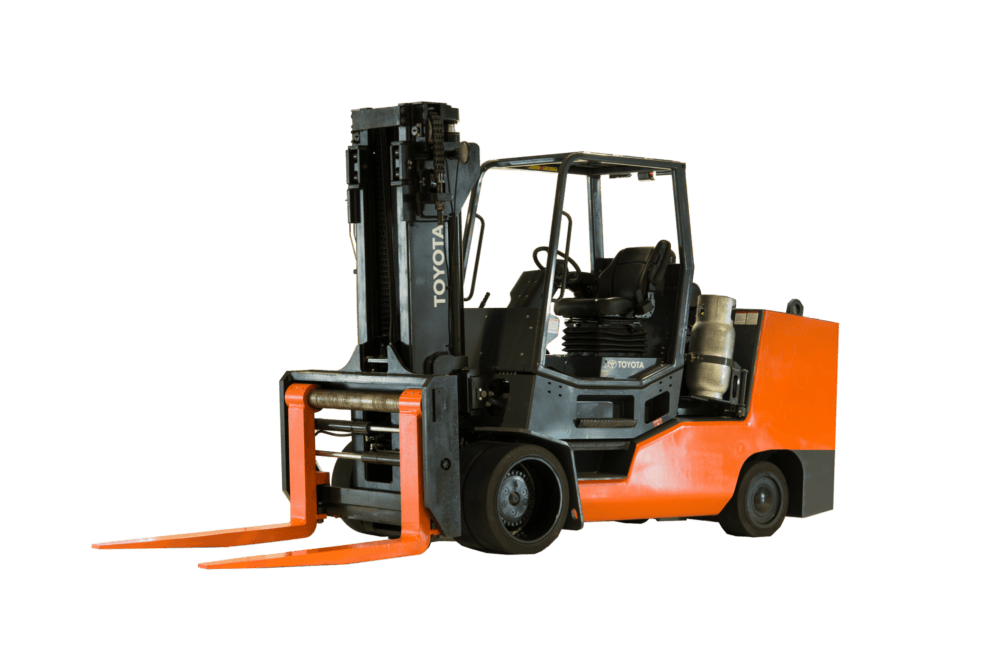

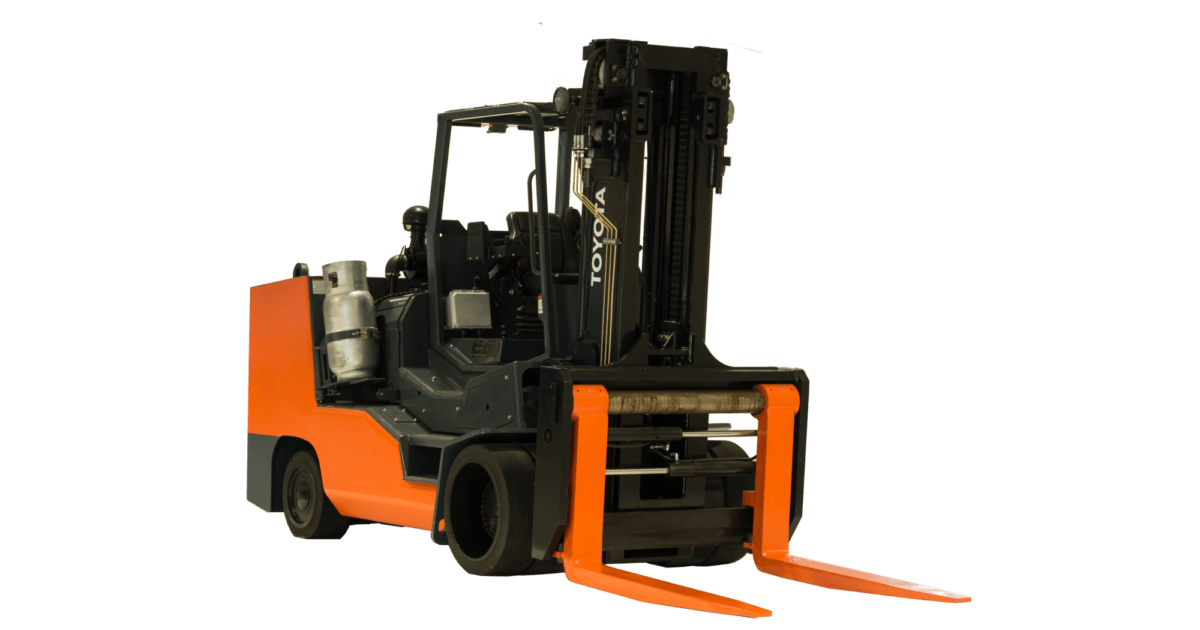

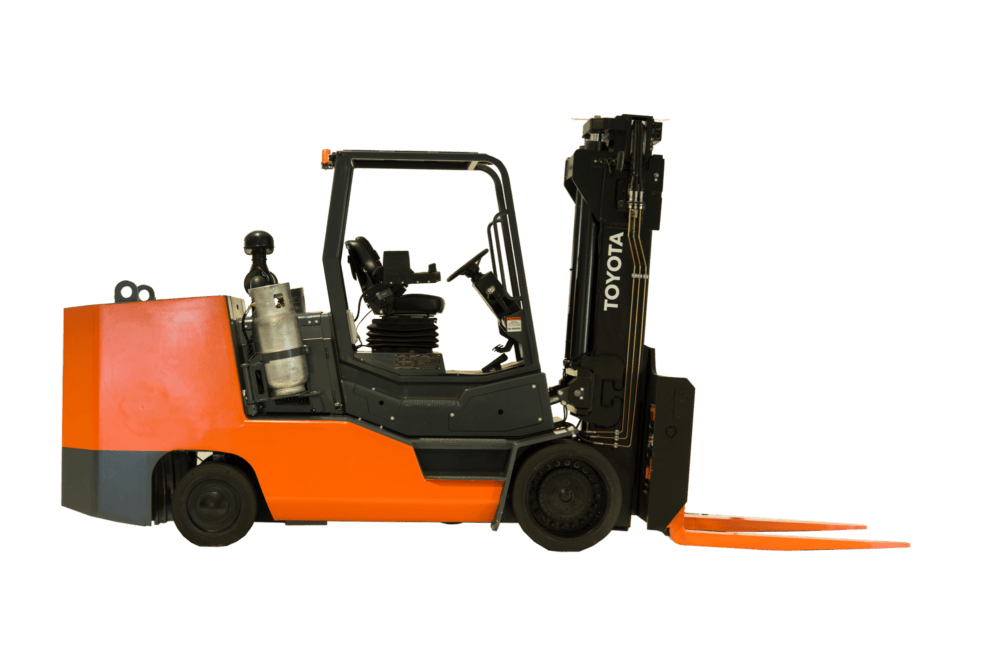

High-Capacity Large Cushion Forklift
Heavy duty lifting and compact power moves indoors with The Toyota High-Capacity Large Cushion Forklift. With it’s 100,000 lb lift capacity and V8 engine it is the perfect heavy duty forklift for the toughest indoor
Overview
Heavy duty lifting and compact power moves indoors with The Toyota High-Capacity Large Cushion Forklift. With it’s 100,000 lb lift capacity and V8 engine it is the perfect heavy duty forklift for the toughest indoor
PSI 5.7 L V8 Engine (LP)
12 Volt electrical system
Dana model 3,2000 transmission
Engine shut down system
2-function hydraulic control valve (lift/tilt)
Dual action steer cylinder
Full hydraulic power steering
Illuminated digital instrument display
Counterweight Tow pin
Wide Visible Mast (V)
Full-Free Lift Three Stage Mast (FSV)
Dual Camera System Visibility Aid
Air Conditioning and Heater
Overload Warning System
5 lb. Fire Extinguisher
Various LED light options
Various tire and wheel types (non-marking, high-load poly drive, etc.)
Better performance. More versatility.
25,000 +6
Load Capacity (lbs)
9.7 / 10.3
Max. Travel Speed Full Load (MPH)
61 / 58 / 41 / 20
Max. Lift Speed Full Load (FPM)
Model Specifications
| Model Number | Load Capacity (lbs) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack (In.) |
|---|---|---|---|---|---|
| THDC2500-24 | 25,000 | 9.7 | 61 | 73.7 | 167 |
| THDC2500-30 | 25,000 | 9.7 | 61 | 69.9 | 167.1 |
| THDC3000-24 | 30,000 | 9.7 | 61 | 67.1 | 167 |
| THDC3000-30 | 30,000 | 9.7 | 61 | 64.7 | 174 |
| THDC3000-36 | 30,000 | 9.7 | 58 | 61.2 | 174.3 |
| THDC3500-24 | 35,000 | 9.7 | 58 | 62.9 | 174.3 |
| THDC4000-30 | 40,000 | 9.7 | 41 | 49.8 | 184.2 |
| THDC4000-36 | 40,000 | 9.7 | 41 | 47.4 | 186 |
| THDC4500-30 | 45,000 | 9.7 | 41 | 46.6 | 186 |
| THDC4500-36 | 45,000 | 10.3 | 20 | 35.3 | 217.5 |
| THDC5000-30 | 50,000 | 10.3 | 20 | 34.7 | 217 |
| THDC5000-36 | 50,000 | 10.3 | 20 | 33.3 | 217.5 |
| THDC5500-36 | 55,000 | 10.3 | 20 | 31.5 | 217.5 |
THDC2500-24
- Load Capacity (lbs)
- 25,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 61
- Max. Gradeability Full Load (%)
- 73.7
- Basic Right Angle Stack (In.)
- 167
THDC2500-30
- Load Capacity (lbs)
- 25,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 61
- Max. Gradeability Full Load (%)
- 69.9
- Basic Right Angle Stack (In.)
- 167.1
THDC3000-24
- Load Capacity (lbs)
- 30,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 61
- Max. Gradeability Full Load (%)
- 67.1
- Basic Right Angle Stack (In.)
- 167
THDC3000-30
- Load Capacity (lbs)
- 30,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 61
- Max. Gradeability Full Load (%)
- 64.7
- Basic Right Angle Stack (In.)
- 174
THDC3000-36
- Load Capacity (lbs)
- 30,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 58
- Max. Gradeability Full Load (%)
- 61.2
- Basic Right Angle Stack (In.)
- 174.3
THDC3500-24
- Load Capacity (lbs)
- 35,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 58
- Max. Gradeability Full Load (%)
- 62.9
- Basic Right Angle Stack (In.)
- 174.3
THDC4000-30
- Load Capacity (lbs)
- 40,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 41
- Max. Gradeability Full Load (%)
- 49.8
- Basic Right Angle Stack (In.)
- 184.2
THDC4000-36
- Load Capacity (lbs)
- 40,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 41
- Max. Gradeability Full Load (%)
- 47.4
- Basic Right Angle Stack (In.)
- 186
THDC4500-30
- Load Capacity (lbs)
- 45,000
- Max. Travel Speed Full Load (MPH)
- 9.7
- Max. Lift Speed Full Load (FPM)
- 41
- Max. Gradeability Full Load (%)
- 46.6
- Basic Right Angle Stack (In.)
- 186
THDC4500-36
- Load Capacity (lbs)
- 45,000
- Max. Travel Speed Full Load (MPH)
- 10.3
- Max. Lift Speed Full Load (FPM)
- 20
- Max. Gradeability Full Load (%)
- 35.3
- Basic Right Angle Stack (In.)
- 217.5
THDC5000-30
- Load Capacity (lbs)
- 50,000
- Max. Travel Speed Full Load (MPH)
- 10.3
- Max. Lift Speed Full Load (FPM)
- 20
- Max. Gradeability Full Load (%)
- 34.7
- Basic Right Angle Stack (In.)
- 217
THDC5000-36
- Load Capacity (lbs)
- 50,000
- Max. Travel Speed Full Load (MPH)
- 10.3
- Max. Lift Speed Full Load (FPM)
- 20
- Max. Gradeability Full Load (%)
- 33.3
- Basic Right Angle Stack (In.)
- 217.5
THDC5500-36
- Load Capacity (lbs)
- 55,000
- Max. Travel Speed Full Load (MPH)
- 10.3
- Max. Lift Speed Full Load (FPM)
- 20
- Max. Gradeability Full Load (%)
- 31.5
- Basic Right Angle Stack (In.)
- 217.5
Applications across your organization
Built to handle demanding indoor applications with efficient electric performance, dependable control, and all-day operator productivity.
Manufacturing Operations
<p>Support fast-paced production lines with reliable indoor material transport and loading capabilities.</p>
Warehouse Material Handling
<p>Move palletized inventory efficiently through tight aisles and high-volume warehouse environments.</p>
Showing application 1 of 2
Image 1 of 4
Get a quote for the High-Capacity Large Cushion Forklift.
Our team is here to help assist and customize solutions for your specific challenges.
FAQs
Find answers to common questions about our equipment, solutions, services, and support to help you make informed decisions for your operation.
What lifting capacity do I need for my operation?
The right capacity depends on your load weight, lift height, and application requirements. Contact us to chat through the details.
Should I choose an electric or internal combustion forklift?
The right capacity depends on your load weight, lift height, and application requirements. Contact us to chat through the details.
You might also like
Explore additional equipment and solutions designed to improve productivity, efficiency, and performance across your operation.
3-Wheel Electric Forklift
Navigate your warehouse with ease with a Toyota 3-Wheel Forklift. It’s an ideal forklift for any application, especially if space is limited. Its compact design can navigate tight turns and narrow aisles. Featuring industry-leading acceleration
Learn more

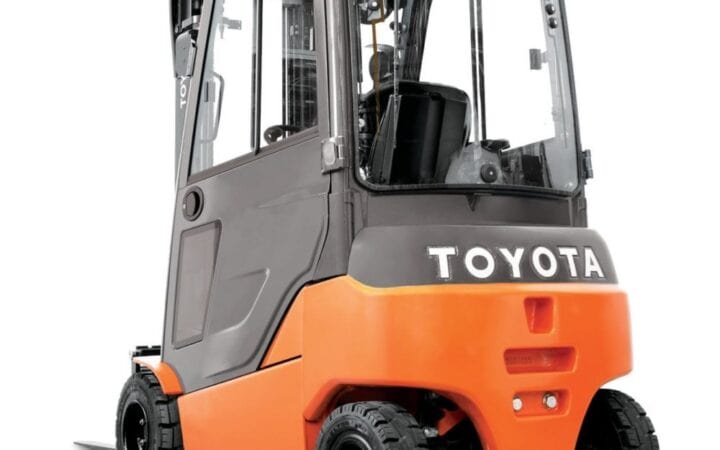

48v Electric Pneumatic Forklift
